Wiring diagrams Wiring diagrams
1/ Indicator wiring diagram.
 |
2/ Multipurpose light switch connections
|
To simplify things cut off the plugs/sockets leaving the wires protruding from the plastic sheath. Yellow & red/white - main feed Purple - horn Grey & black - pilot Green - dipped headlight Blue - mainbeam Grey - tail & speedo White - indicator supply Black & green, / black & white - indicators Yellow & red - headlight flash. |

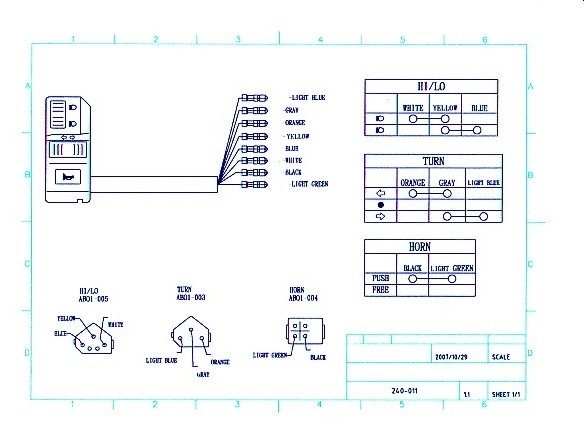

3/ Compact handlebar switch No. 1 connections
 |
